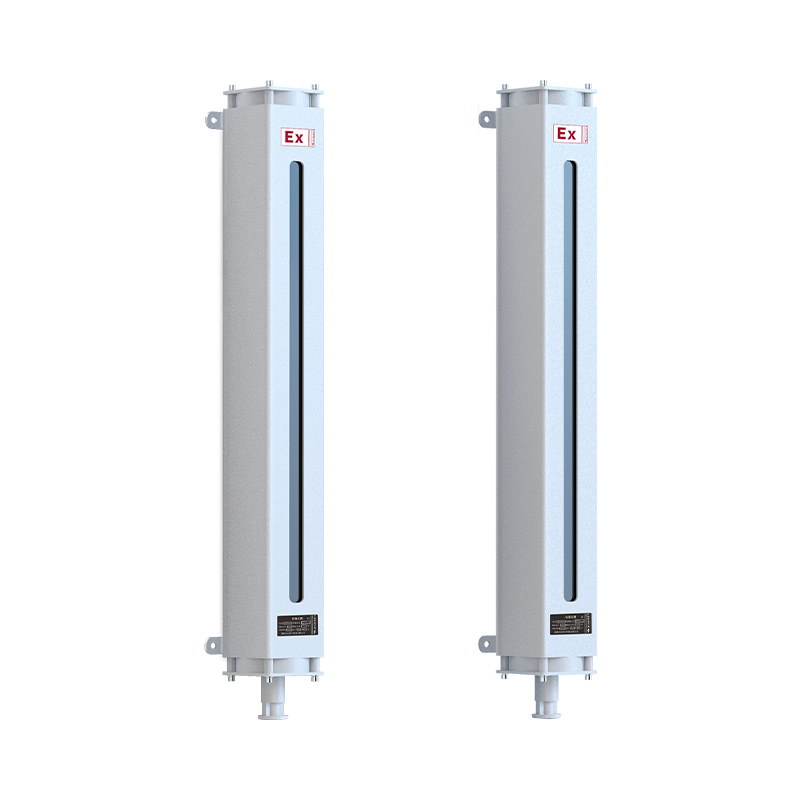

Explosion proof safety light curtain

品牌：ESPE

型号：EFB Series

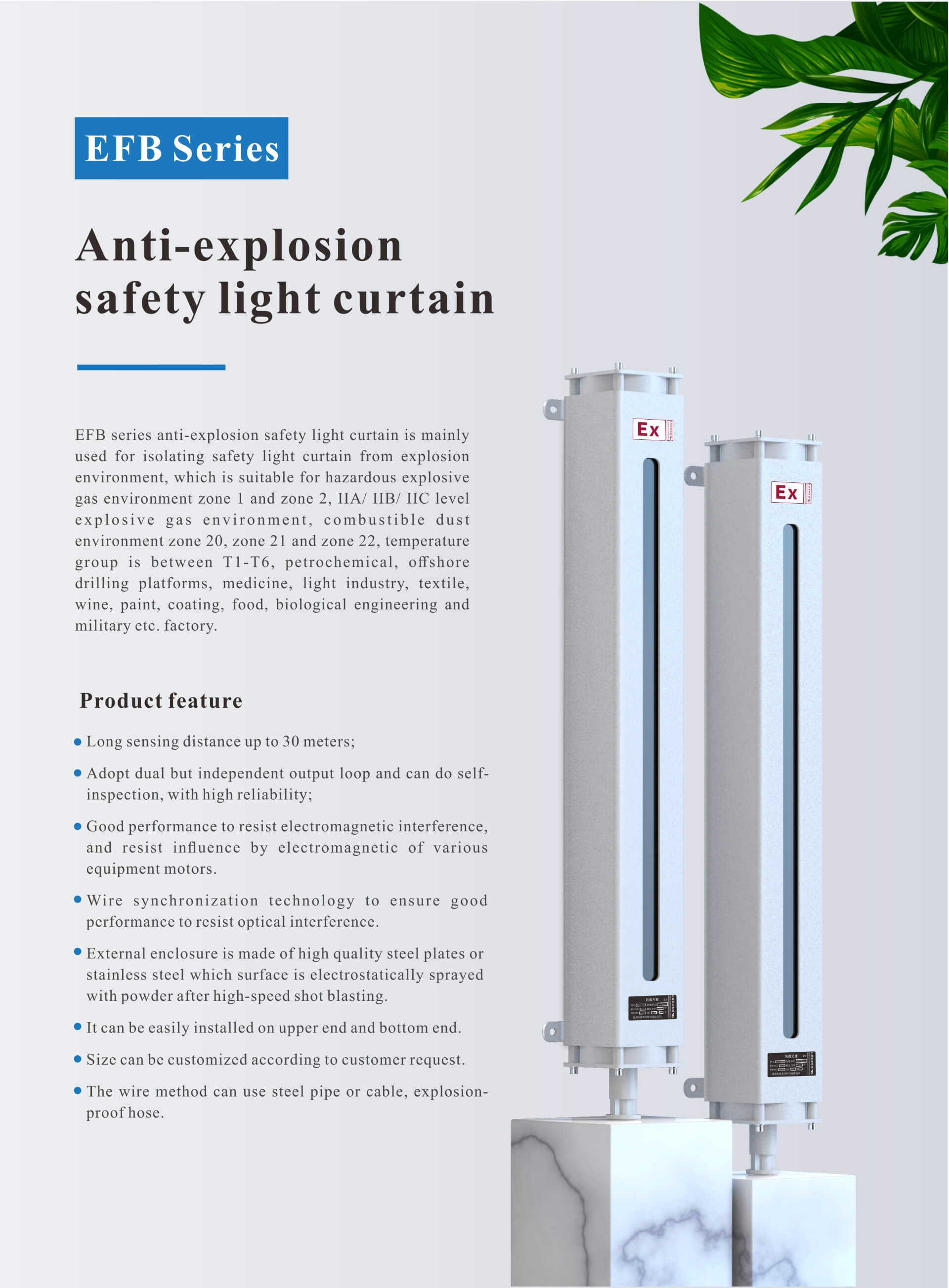

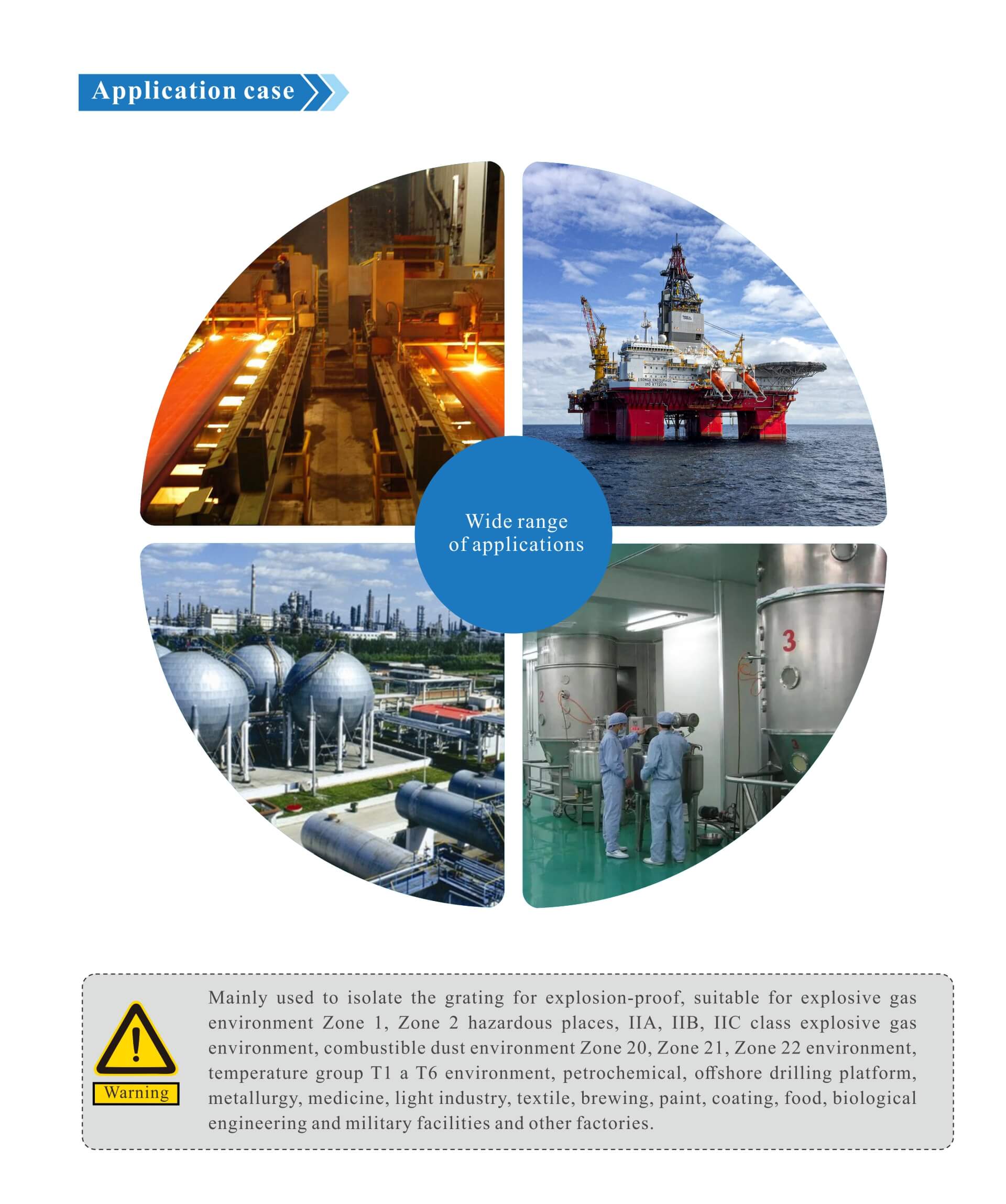

特点：EFB series explosion-proof safety light curtain, mainly used for isolation and explosion prevention. Applicable to explosive gas environmental Zone 1, Zone 2; grade IIA, grade IIB, grade IIC explosive gas environmental zone; combustible dust environmental zone 20, zone 21, zone 22; temperature grade Tl-T6 environmental zone; petrochemical, offshore drilling platform, metallurgy, medicine, light industry, textile, wine, paint, coatings, food, biological engineering and military facilities, etc.

400-869-2227

在线咨询

产品详情

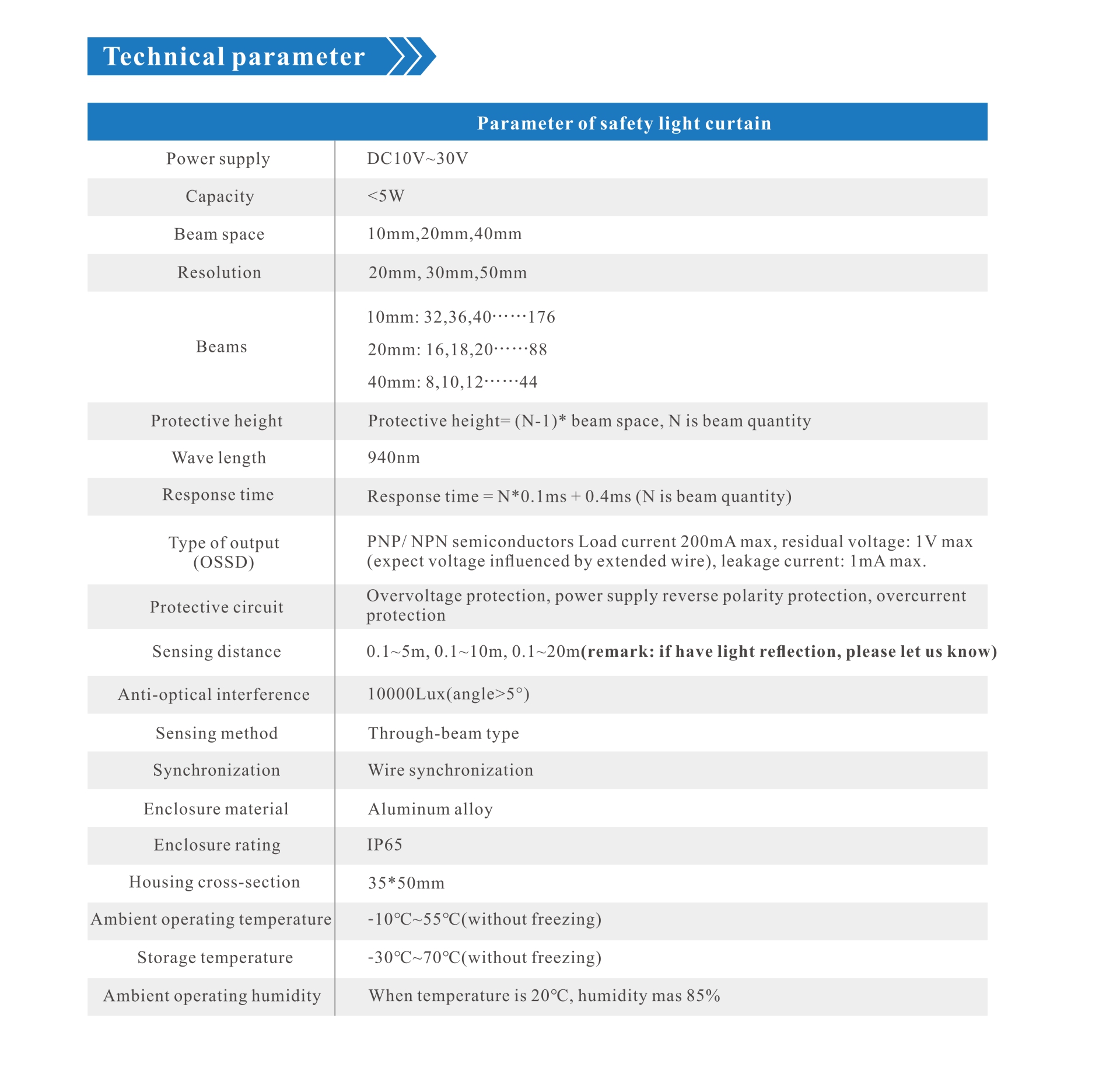

技术参数
选型表
资料下载

Your order can be finished within 2-3 working days.
Your order can be finished within 2-3 working days.

（1、单击”光轴间距“选项卡选择你要的参数；2、直接联系客服选型；）

光轴间距(10mm) 光轴间距(20mm) 光轴间距(40mm)

光束数量(n)	保护高度(mm)	光栅总高(mm)	规格型号
32	310	616	EFB-EX-N3210
36	350	656	EFB-EX-N3610
40	390	696	EFB-EX-N4010
44	430	736	EFB-EX-N4410
48	470	776	EFB-EX-N4810
52	510	816	EFB-EX-N5210
56	550	856	EFB-EX-N5610
60	590	896	EFB-EX-N6010
64	630	936	EFB-EX-N6410
68	670	976	EFB-EX-N6810
72	710	1016	EFB-EX-N7210
76	750	1056	EFB-EX-N7610
80	790	1096	EFB-EX-N8010
84	830	1136	EFB-EX-N8410
88	870	1176	EFB-EX-N8810
92	910	1216	EFB-EX-N9210
96	950	1256	EFB-EX-N9610
100	990	1296	EFB-EX-N10010
……	……	……	……
176	1750	2056	EFB-EX-N17610

光束数量(n)	保护高度(mm)	光栅总高(mm)	规格型号
16	300	616	EFB-EX-N1620
18	340	656	EFB-EX-N1820
20	380	696	EFB-EX-N2020
22	420	736	EFB-EX-N2220
24	460	776	EFB-EX-N2420
26	500	816	EFB-EX-N2620
28	540	856	EFB-EX-N2820
30	580	896	EFB-EX-N3020
32	620	936	EFB-EX-N3220
34	660	976	EFB-EX-N3420
36	700	1016	EFB-EX-N3620
38	740	1056	EFB-EX-N3820
40	780	1096	EFB-EX-N4020
42	820	1136	EFB-EX-N4220
44	860	1176	EFB-EX-N4420
46	900	1216	EFB-EX-N4620
48	940	1256	EFB-EX-N4820
50	980	1296	EFB-EX-N5020
……	……	……	……
88	1740	2056	EFB-EX-N8820

光束数量(n)	保护高度(mm)	光栅总高(mm)	规格型号
08	280	616	EFB-EX-N0840
10	360	696	EFB-EX-N1040
12	440	776	EFB-EX-N1240
14	520	856	EFB-EX-N1440
16	600	936	EFB-EX-N1640
18	680	1016	EFB-EX-N1840
20	760	1096	EFB-EX-N2040
22	840	1176	EFB-EX-N2240
24	920	1256	EFB-EX-N2440
26	1000	1336	EFB-EX-N2640
28	1080	1416	EFB-EX-N2840
30	1160	1496	EFB-EX-N3040
32	1240	1576	EFB-EX-N3240
34	1320	1656	EFB-EX-N3440
36	1400	1736	EFB-EX-N3640
38	1480	1816	EFB-EX-N3840
40	1560	1896	EFB-EX-N4040
42	1640	1976	EFB-EX-N4240
44	1720	2056	EFB-EX-N4440
