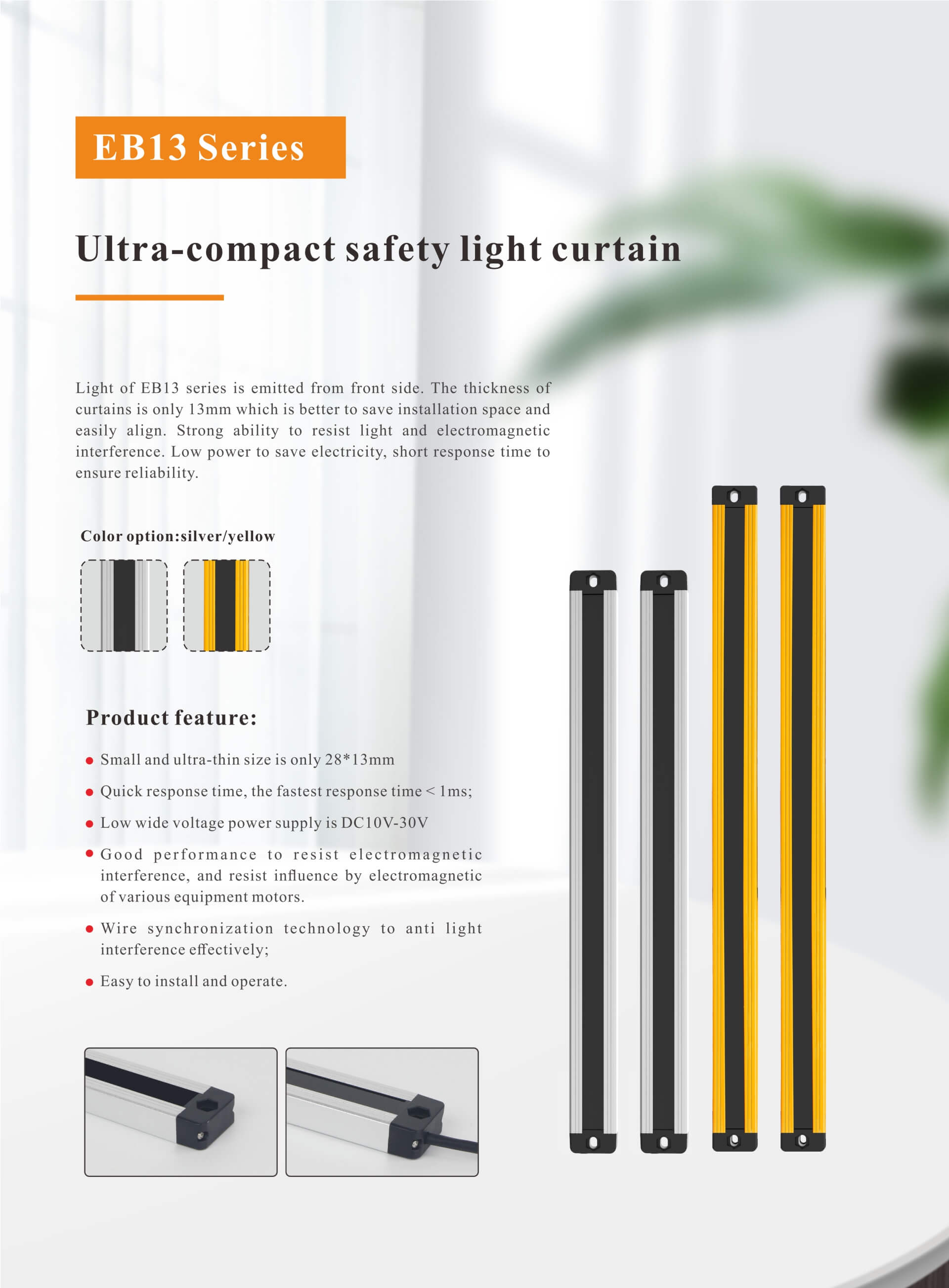

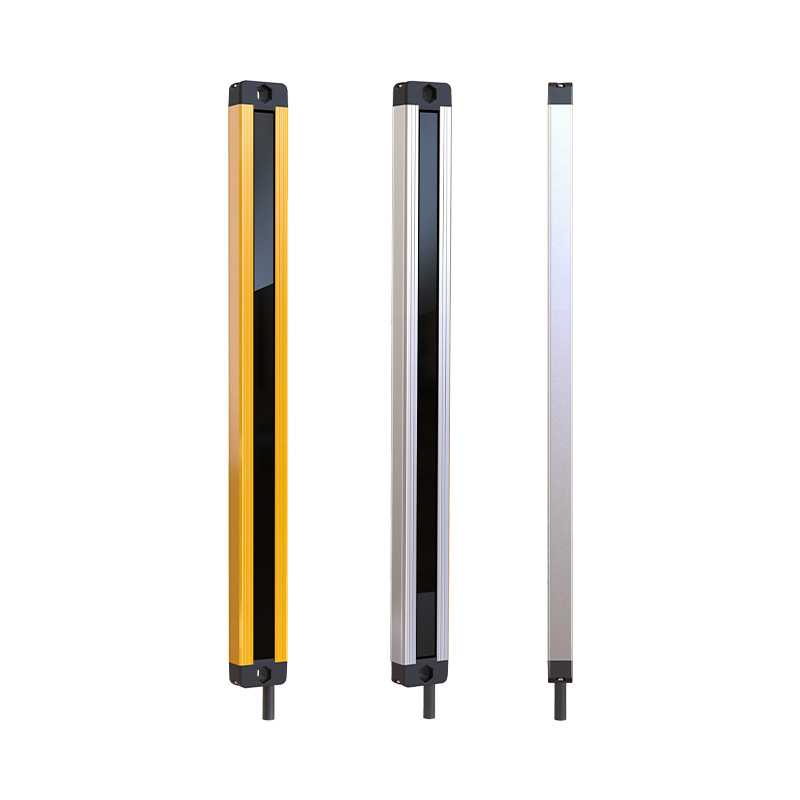

EB13 ultra-thin safety light curtain

品牌：ESPE

型号：EB13 Series

特点：Price range: $61-$681/set; Features of safety light curtain:1.Self-inspection in whole process, excellent vibration resistance and performance stability;2.High resolution, workable to protect finger, palm and human body, with diversified installation forms;3.Easy to align with optical axis, strong to fight against optical or electromagnetic interference;4.Low power consumption design, short response time and high reliability.

400-869-2227

在线咨询

产品详情

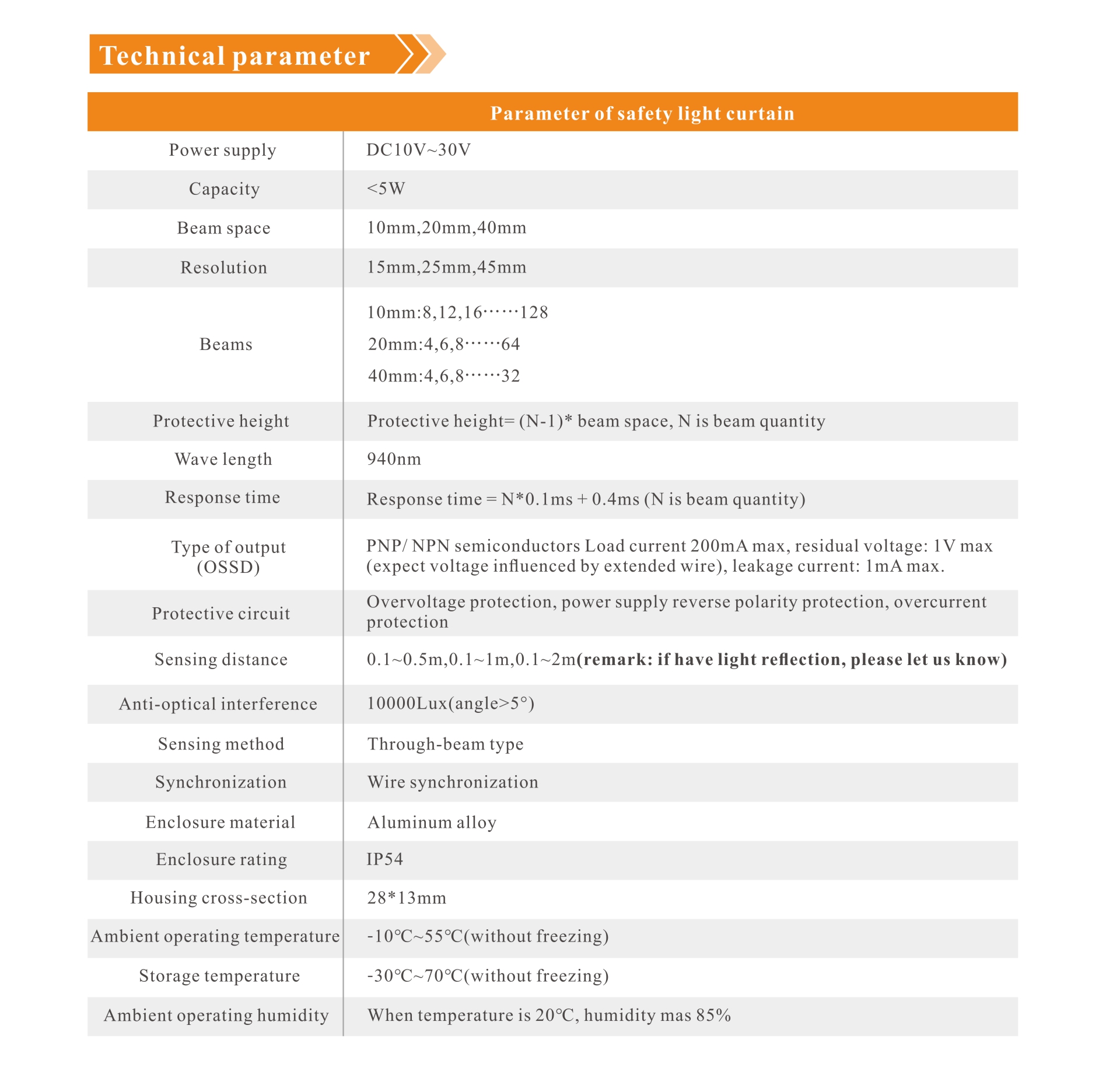

技术参数
选型表
资料下载

You order will be finished within 2-3 working day.
You order will be finished within 2-3 working day.

（1、单击”光轴间距“选项卡选择你要的参数；2、直接联系客服选型；）

光轴间距(10mm) 光轴间距(20mm) 光轴间距(40mm)

光束数量(n)	保护高度(mm)	光栅总高(mm)	规格型号
08	70	104	EB13-0810
12	110	144	EB13-1210
16	150	184	EB13-1610
20	190	224	EB13-2010
24	230	264	EB13-2410
28	270	304	EB13-2810
32	310	344	EB13-3210
36	350	384	EB13-3610
40	390	424	EB13-4010
44	430	464	EB13-4410
48	470	504	EB13-4810
52	510	544	EB13-5210
56	550	584	EB13-5610
60	590	624	EB13-6010
64	630	664	EB13-6410
68	670	704	EB13-6810
72	710	744	EB13-7210
76	750	784	EB13-7610
……	……	……	……
128	1270	1304	EB13-12810

光束数量(n)	保护高度(mm)	光栅总高(mm)	规格型号
04	60	104	EB13-0420
06	100	144	EB13-0620
08	140	184	EB13-0820
10	180	224	EB13-1020
12	220	264	EB13-1220
14	260	304	EB13-1420
16	300	344	EB13-1620
18	340	384	EB13-1820
20	380	424	EB13-2020
22	420	464	EB13-2220
24	460	504	EB13-2420
26	500	544	EB13-2620
28	540	584	EB13-2820
30	580	624	EB13-3020
32	620	664	EB13-3220
34	660	704	EB13-3420
36	700	744	EB13-3620
38	740	784	EB13-3820
……	……	……	……
64	1260	1304	EB13-6420

光束数量(n)	保护高度(mm)	光栅总高(mm)	规格型号
04	120	184	EB13-0440
06	200	264	EB13-0640
08	280	344	EB13-0840
10	360	424	EB13-1040
12	440	504	EB13-1240
14	520	584	EB13-1440
16	600	664	EB13-1640
18	680	744	EB13-1840
20	760	824	EB13-2040
22	840	904	EB13-2240
24	920	984	EB13-2440
26	1000	1064	EB13-2640
28	1080	1144	EB13-2840
30	1160	1224	EB13-3040
32	1240	1304	EB13-3240
