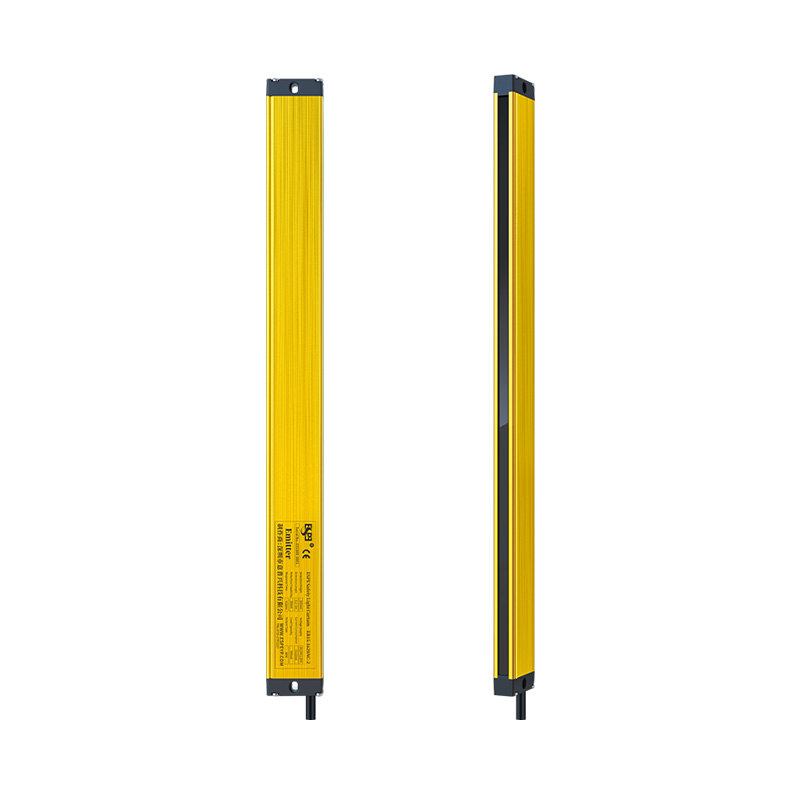

EB15 compact safety light curtain

品牌：ESPE

型号：EB15 Series

特点：Price range: $65-$676/set (Order can be finished within 2-3 working days). Features of safety light curtain:1.The first Untra-thin safety light curtain in China;2.Compact size for small installment space, excellent concealment, exquisite appearance and stable performance;3.Widely use in non-standard equipment or equipment with small installation space;4.Apply in optical detection equipment such as AOI as a protection or start signal.

400-869-2227

在线咨询

产品详情

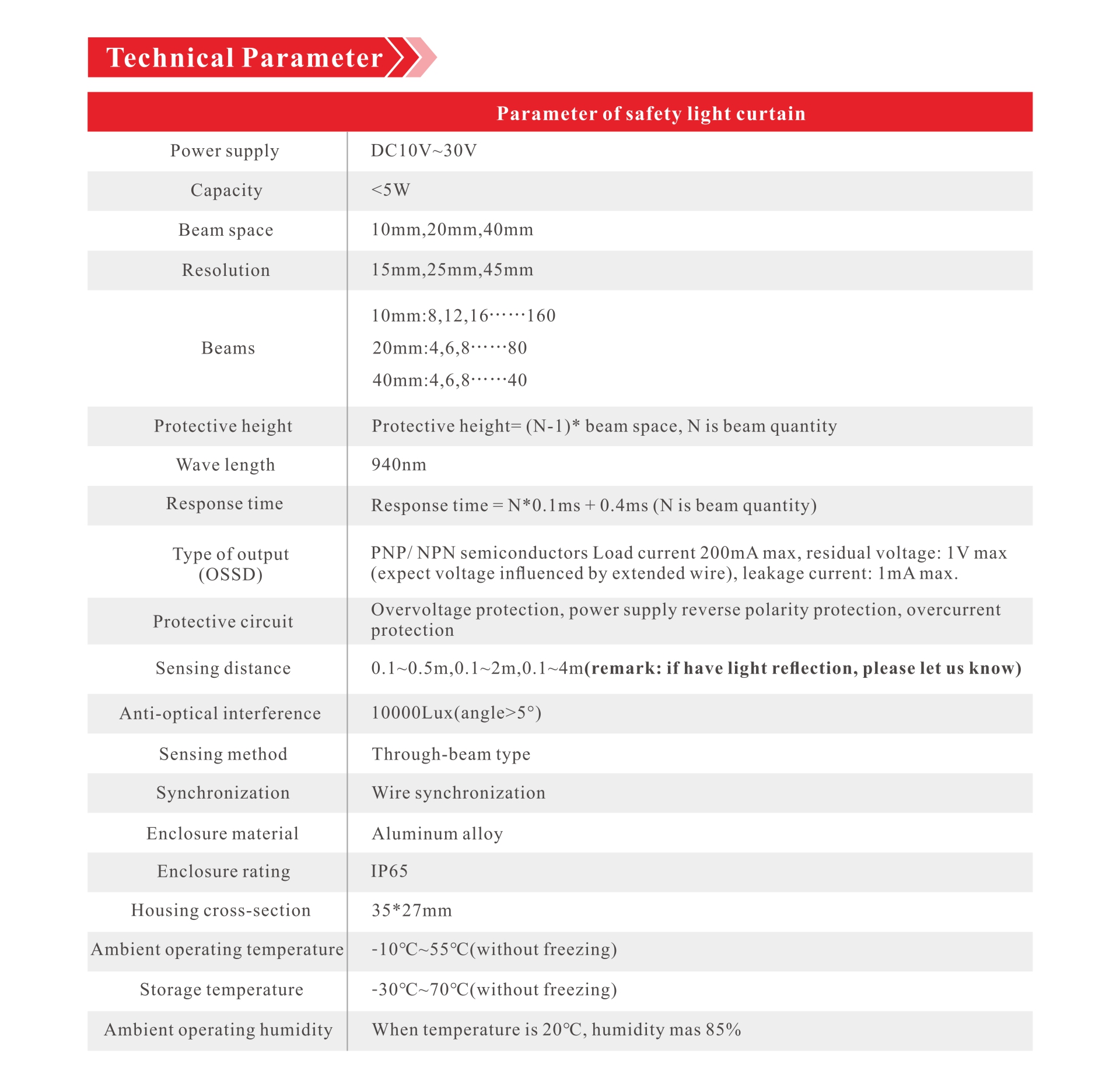

技术参数
选型表
资料下载

Your order can be finished within 2-3 working days.
Your order can be finished within 2-3 working days.

（1、单击”光轴间距“选项卡选择你要的参数；2、直接联系客服选型；）

光轴间距(10mm) 光轴间距(20mm) 光轴间距(40mm)

光束数量(n)	保护高度(mm)	光栅总高(mm)	规格型号
08	70	104	EB15-0810
12	110	144	EB15-1210
16	150	184	EB15-1610
20	190	224	EB15-2010
24	230	264	EB15-2410
28	270	304	EB15-2810
32	310	344	EB15-3210
36	350	384	EB15-3610
40	390	424	EB15-4010
44	430	464	EB15-4410
48	470	504	EB15-4810
52	510	544	EB15-5210
56	550	584	EB15-5610
60	590	624	EB15-6010
64	630	664	EB15-6410
68	670	704	EB15-6810
72	710	744	EB15-7210
76	750	784	EB15-7610
……	……	……	……
160	1590	1624	EB15-16010

光束数量(n)	保护高度(mm)	光栅总高(mm)	规格型号
04	60	104	EB15-0420
06	100	144	EB15-0620
08	140	184	EB15-0820
10	180	224	EB15-1020
12	220	264	EB15-1220
14	260	304	EB15-1420
16	300	344	EB15-1620
18	340	384	EB15-1820
20	380	424	EB15-2020
22	420	464	EB15-2220
24	460	504	EB15-2420
26	500	544	EB15-2620
28	540	584	EB15-2820
30	580	624	EB15-3020
32	620	664	EB15-3220
34	660	704	EB15-3420
36	700	744	EB15-3620
38	740	784	EB15-3820
……	……	……	……
80	1580	1624	EB15-8020

光束数量(n)	保护高度(mm)	光栅总高(mm)	规格型号
04	120	164	EB15-0440
06	200	244	EB15-0640
08	280	324	EB15-0840
10	360	404	EB15-1040
12	440	484	EB15-1240
14	520	564	EB15-1440
16	600	644	EB15-1640
18	680	724	EB15-1840
20	760	804	EB15-2040
22	840	884	EB15-2240
24	920	964	EB15-2440
26	1000	1044	EB15-2640
28	1080	1124	EB15-2840
30	1160	1204	EB15-3040
32	1240	1284	EB15-3240
34	1320	1364	EB15-3440
36	1400	1444	EB15-3640
38	1480	1524	EB15-3840
40	1560	1604	EB15-4040
