Economical safety light curtain-Safety Light Curtain-ESPE意普官网

当前位置：首页

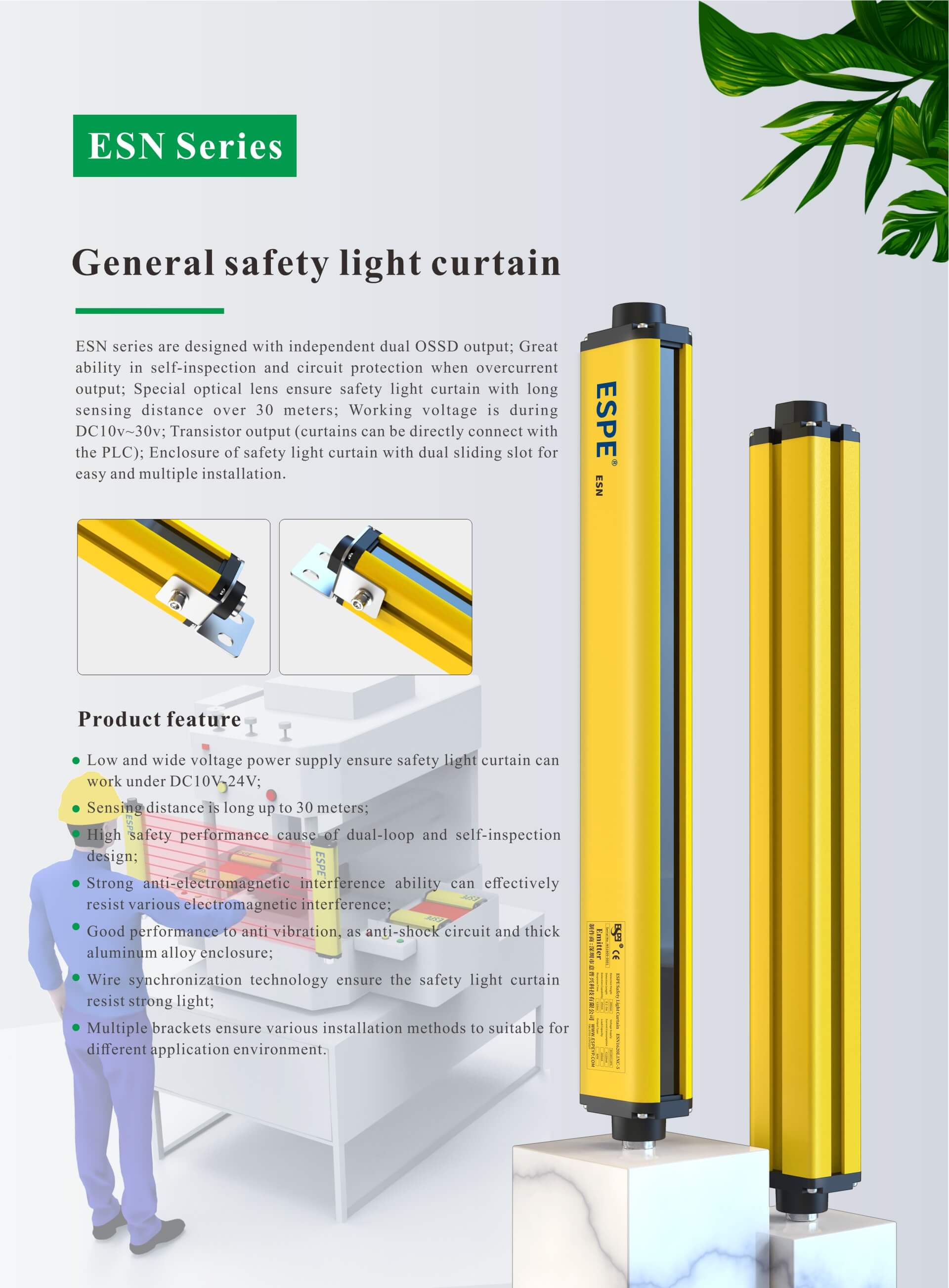

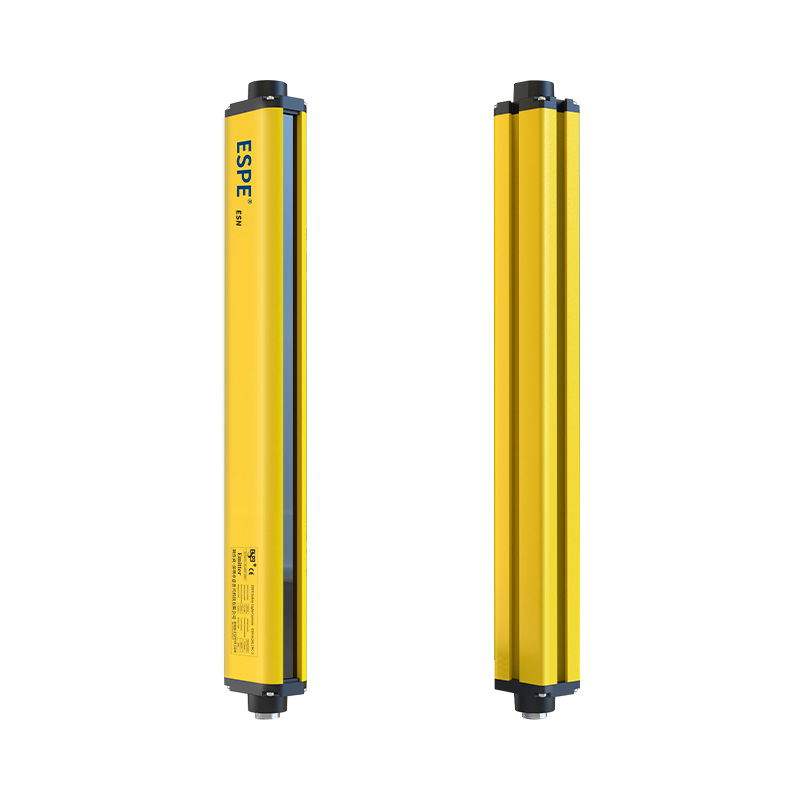

Economical safety light curtain

品牌：ESPE

型号：ESN Series

特点：Price range: $53/set-$846/set(Inquire to get latest price,goods can be finished within 2-3 working days.). Product feature: 1.ESN series safety light curtain is the universal safety light curtain; 2.Adopting the principle of optical lens, ESN safety light curtain detecting distance is up to 30M; 3.It can effectively detect any opaque objects entering the detecting areas.

400-869-2227

在线咨询

产品详情

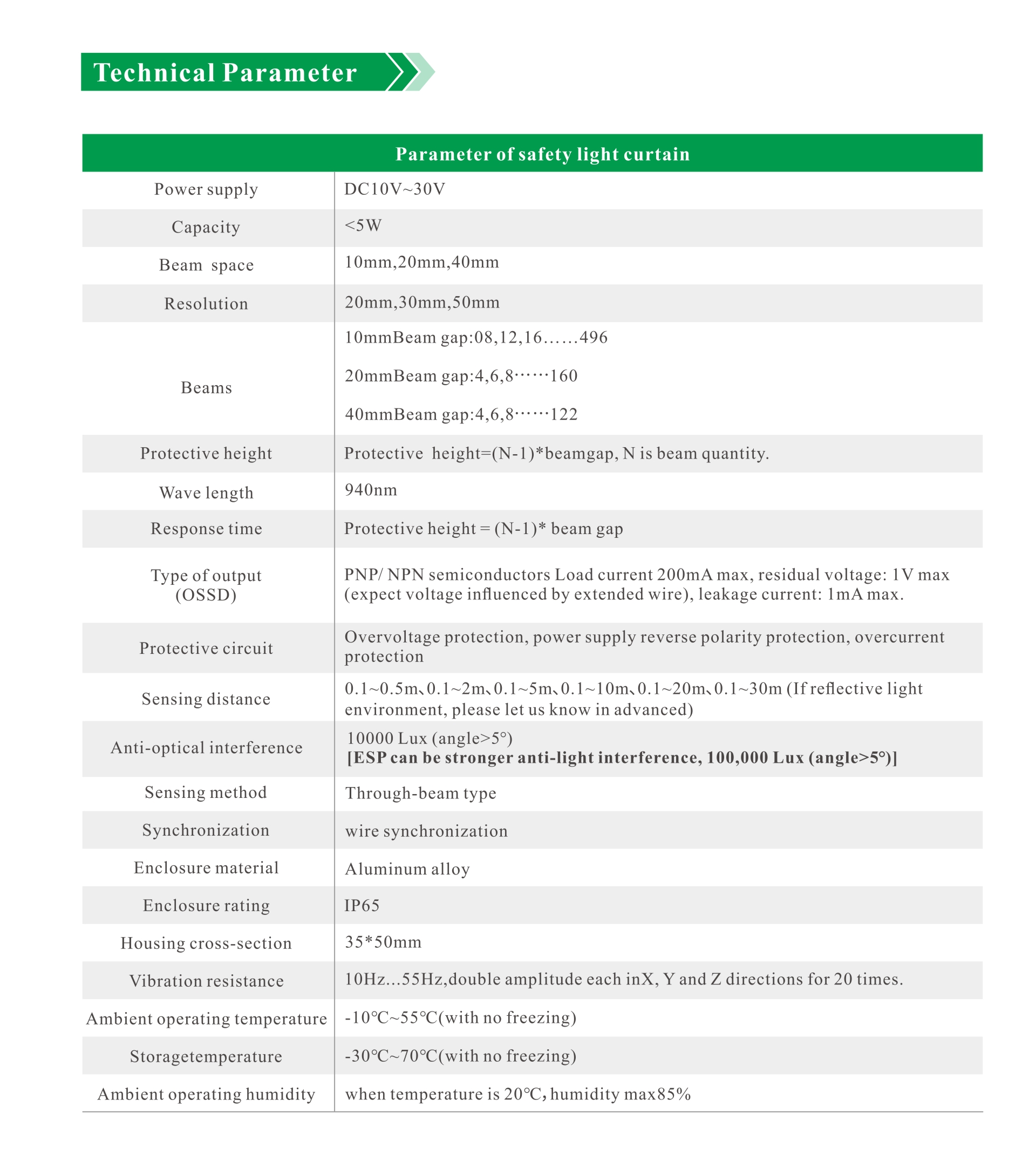

技术参数
选型表
资料下载

Your goods will be finished within 2-3 working days.
Your goods will be finished within 2-3 working days.

（1、单击”光轴间距“选项卡选择你要的参数；2、直接联系客服选型；）

光轴间距(10mm) 光轴间距(20mm) 光轴间距(40mm)

光束数量(n)	保护高度(mm)	光栅总高(mm)	规格型号
08	70	150	ESN0810
12	110	190	ESN1210
16	150	230	ESN1610
20	190	270	ESN2010
24	230	310	ESN2410
28	270	350	ESN2810
32	310	390	ESN3210
36	350	430	ESN3610
40	390	470	ESN4010
44	430	510	ESN4410
48	470	550	ESN4810
52	510	590	ESN5210
56	550	630	ESN5610
60	590	670	ESN6010
64	630	710	ESN6410
68	670	750	ESN6810
72	710	790	ESN7210
76	750	830	ESN7610
……	……	……	……
320	3190	3270	ESN32010

光束数量(n)	保护高度(mm)	光栅总高(mm)	规格型号
04	60	125	ESN0420
06	100	190	ESN0620
08	140	230	ESN0820
10	180	270	ESN1020
12	220	310	ESN1220
14	260	350	ESN1420
16	300	390	ESN1620
18	340	430	ESN1820
20	380	470	ESN2020
22	420	510	ESN2220
24	460	550	ESN2420
26	500	590	ESN2620
28	540	630	ESN2820
30	580	670	ESN3020
32	620	710	ESN3220
34	660	750	ESN3420
36	700	790	ESN3620
38	740	830	ESN3820
……	……	……	……
160	3180	3270	ESN16020

光束数量(n)	保护高度(mm)	光栅总高(mm)	规格型号
04	120	210	ESN0440
06	200	290	ESN0640
08	280	370	ESN0840
10	360	450	ESN1040
12	440	530	ESN1240
14	520	610	ESN1440
16	600	690	ESN1640
18	680	770	ESN1840
20	760	850	ESN2040
22	840	930	ESN2240
24	920	1010	ESN2440
26	1000	1090	ESN2640
28	1080	1170	ESN2840
30	1160	1250	ESN3040
32	1240	1330	ESN3240
34	1320	1410	ESN3440
36	1400	1490	ESN3640
38	1480	1570	ESN3840
……	……	……	……
104	4120	4210	ESN10440
